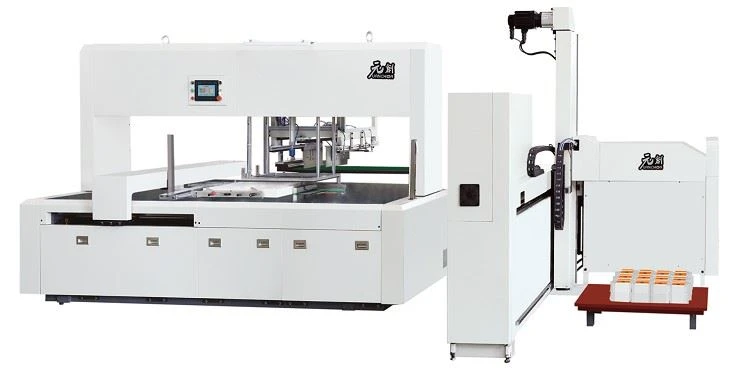

Blanking and Stripping Machine





1) Simple machine design, more easy to operate;

2) Faster than normal low speed machine;

3) Only need one worker to operate it;

4) Easy to maintain and adjust;

5) Durable spare parts, can let machine more longer lifetime.

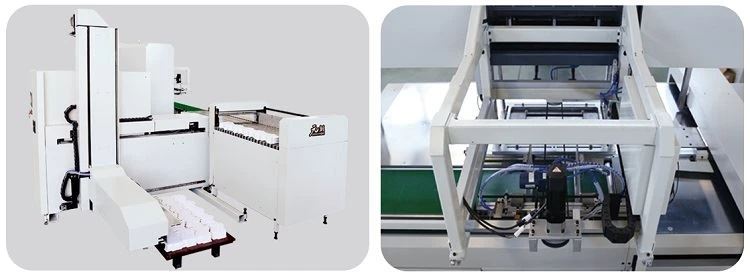

Characteristics of Robot Arm and Automatic Stack Loader Improve labor efficiency, reduce labor intensity and save labor costs. Our blanking and stripping machine is your best choice!





Robot Arm Min.paper size Max.paper size Power Automatic stack loader Paper receiving size Palletizing thickness (single) Power Dimension Air compressor

QF1080S 70x70mm 300x300mm 1.5kw QF1080M 920x900x1100mm 60-100mm 3.7kw 3000x2500x2200mm Exhaust volume＞0.1m3/min; Working pressure:0.8MP(User provided)

Machine production speed depend paper quality and thickness.

Design and Specification are subject to change without notice,photos for reference only.

More choice and model, please contact us!





QF1080B High Speed Automatic Blanking Machine
Model Max.pressure Speed Max.blanking size Min.stripping size Max.blanking thickness Operation system Max.paper size Min.paper size Machine size Machine power	QF1080B 7Mpa Blanking Speed 500-1500 times/hour 520x380mm 30x30mm Thickness 60mm-120mm(50-200 Pieces) PLC controlled 1080x780mm 540x410mm 3300x1750x1900(LxWxH) 4.2kw





QF1080C High Speed Automatic Blanking Machine
Model Max.pressure Speed Max.blanking size Min.stripping size Max.blanking thickness Operation system Max.paper size Min.paper size Machine size Machine power	QF1080C 7Mpa Blanking Speed 500-1500 times/hour 520x380mm 30x30mm Thickness 60mm-120mm(50-200张) PLC controlled 1080x780mm 540x410mm 4310x1750x1950mm (LxWxH) 6.7kw

This machine is suitable for cross products and products with two kinds of different shapes or different sizes.





















Q: How can you do after sales service?

A: Beside the quality guarantee. our company also regards the after sales service. using a full arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24 hours on phone/ on site technical support/ on site service/ preventive maintenance also training again.



Q: What's your payment terms?

A: 4.30% deposit by TT.70 % balance before shipping by TT or at sight L/C. westem union /cash are also accepted for us.
