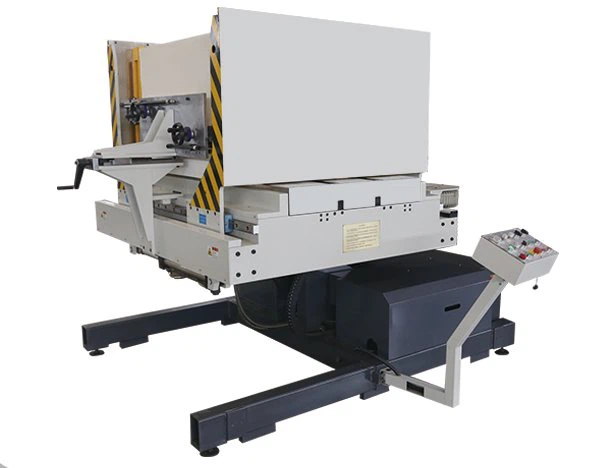

Paper Stacker Pile Turner



Our paper stacker pile turner is usually used in printing and packaging industry, for pile turning, aligning, dust removal, etc. It is necessary equipment to improve work efficiency and printing quality.





High pressure air blower	Turning unit	Imported hydraulic cylinder

Vibration tray	Hydraulic station	Gauge block





1. Our pile turner can be used in post-print process, such as rolling over the back of paper, reprinting, back polishing, and change of the pallet, packaging and transportation.

2. It is a good machine with no occupational injuries, which helps save both time and manpower and promotes work efficiency.





• Dust removal
• Paper separation
• Aligning
• Turning
• High efficiency, easy operation







Model Max. weight of pile(+pallets) Max. paper size Opening width	FZS1200(Auto-rotation) 1200kg 1200×800mm Max.1600mm Min.840mm	FZ1200 1200kg 1200×800mm Max.1640mm Min.760mm	FZ1200A 1400kg 1200×800mm Max.1920mm Min.920mm	FZ1450 1600kg 1450×1100mm Max.1640mm Min.760mm	FZ1700 2500kg 1700×1200mm Max.1900mm Min.1200mm
Electrical data
Total power	12kw	9kw	9kw	12kw	17kw
Power supply	3P 380V AC 50Hz
Hydraulic
Pressure	Max. 16MPA Hydraulic oil Summer46 # Winer32 # Volume of oil tank: 12 liters
General parameter
Net weight Dimension	3050kg 2.5×2×2.1m	2800kg 2.37×2.09×2.1m	3600kg 2.9×2.4×2.2m	4000kg 2.5×2×2.3m	4500kg 3.17×2.55×2.4m
Noise	< 80 decibels
Working environment
Temperature Humidity Ground	+ 12℃ ~ + 45℃ Ventilation and dry relative humidity less than 50% Ground level and ground





1. Paper-pile flip sorting machine belongs to printing auxiliary equipment, it has turning, airing, jogging and aligning functions, the optional includes anti-static device (onic wind).

2. Paper flip is using for double side printing, turning to print back side after the front side printed, or turning to print front side after coating on back side(such as mildew, moth-proofing, moisture proof light oil etc); through paper-pile flip to alleviate the printed paper, which stored for a ong period become warped edge and edge of crimp degree. Lots of different types of paper need to be flipped, such as CCNB is printed on the gray bottom only, TRL is printed on the white bottom only, offset paper printing opposite, etc.

3. Airing and dust removing, jogging, reducing impurities such as lint and paper scraps, improving the surface quality of the paper, reducing double feeding, clear spray the powder, speeding up ink drying, reducing paper adhesion and set-off, reducing ink scent, improving production efficiency and product quality.





















Q: How do you make your price?

A: We make the price according to our comprehensive costing. And our price will be lower than the trade company because we are manufacturer. You will get competitive price and better quality.
