Double Head Automatic Blanking Machine



This machine is used for blanking the finished cardboard, plastic and leathers which processed by die cutting machine. With compact structure, high pressure and precision, it is easy for operation with reliable quality to lower the working intensity and labor cost. This machine is suitable for printing, packaging and plastic industry.





✓ Compact structure, fine manufactured, high pressure and precision, easy operation and safe.

✓ High grade material welded all in one with high strength.

✓ Sealed cover to improve the safety of operation.

✓ Moving platform with stable stripping head, the products are moving along with two axis, working area are controlled by PLC and position limiter.

✓ High power servo motor no maintains needed, the movement are run by ball screw and straight line guide.

✓ All direction technique, photoelectric device ensure the measuring precision, sealing design to prevent the dust.

✓ Personnel in production operations, staffing stripping head is not in direct contact with the work site, No security risk.

✓ Operating altitude is reasonably arranged, easy to use.

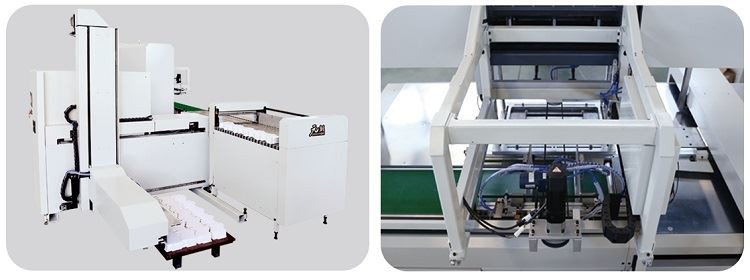

With Robot Arm and Automatic Stack Loader, it can Improve labor efficiency, reduce labor intensity and save labor costs. Our double head automatic blanking Machine is your best choice!





Robot Arm Min.paper size Max.paper size Power Automatic stack loader Paper receiving size Palletizing thickness (single) Power Dimension Air compressor

QF1080S 70x70mm 300x300mm 1.5kw QF1080M 920x900x1100mm 60-100mm 3.7kw 3000x2500x2200mm Exhaust volume＞0.1m3/min; Working pressure:0.8MP(User provided)

Machine production speed depend paper quality and thickness.

Design and Specification are subject to change without notice,photos for reference only.





QF1080B Automatic Blanking Machine

QF1080C Automatic Blanking Machine





1. Automatic stripping

2. Labor saving

3. Improve the quality

















• It replace manual labor, and improve product quality and enterprise benefit.
• It adopt servo motor, Taiwan double guide rail and ball screw which makes accuracy less than 0.02mm
• The latest hydraulic system with inserted motor and oil temperature cooling fac (power 3.75kw). So it has constant and bis working pressure
• The complete machine is equipped with PLC, and with a touch screen interface in operation.The operation is safe and easy.
