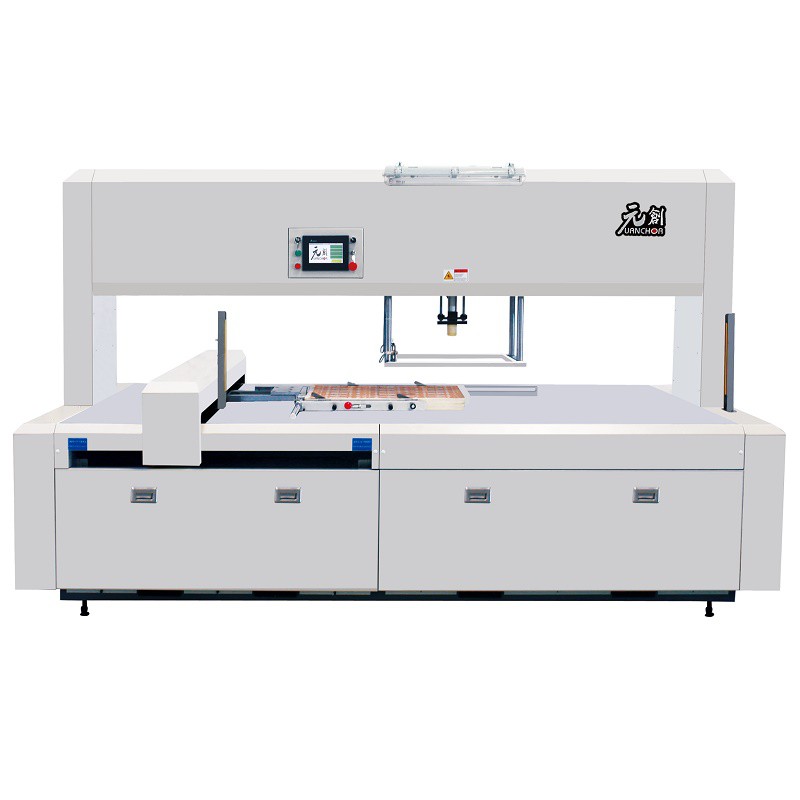

Single Head Automatic Blanking Machine



This machine is professional equipment for pressing, cutting all kinds of ordinary paper, coated paper, suitable for printing, packing, paper container industry. The key transmission die-cutting machine parts are made of imported bearings, a longer life.





1. Compact structure, fine manufacturing and quality control, high pressure and precision, easy operation and safe.

2. High grade material welded all in one with high strength.

3. Sealed cover to improve the safety of operation.

4. Moving platform with stable stripping head, the products are moving along with two axes, the working area is controlled by PLC and position limiter.

5. High power servo motor no maintains needed, the movement are run by ball screw and straight line guide.

6. All direction technique, photoelectric device ensures the measuring precision, and sealing design to prevent the dust.

7. Personnel in production operations, staffing stripping head is not in direct contact with the work site, no security risk.

8. Operating altitude is reasonably arranged, easy to use.









This single head automatic blanking machine has characteristics of Robot Arm and Automatic Stack Loader improving labor efficiency, it can reduce labor intensity and saves labor costs.





Robot Arm Min.paper size Max.paper size Power Automatic stack loader Paper receiving size Palletizing thickness (single) Power Dimension Air compressor

QF1080S 70x70mm 300x300mm 1.5kw QF1080M 920x900x1100mm 60-100mm 3.7kw 3000x2500x2200mm Exhaust volume＞0.1m3/min; Working pressure:0.8MP(User provided)

Machine production speed depends paper's quality and thickness.

Design and Specification are subject to change without notice; photos for reference only.









Model Max.pressure Speed Max.blanking size Min.stripping size Max.blanking thickness Operation system Max.paper size Min.paper size Machine size Machine power

QF1080B 7Mpa Blanking Speed 500-1500 times/hour 520x380mm 30x30mm Thickness 60mm-120mm(50-200 Pieces) PLC controlled 1080x780mm 540x410mm 3300x1750x1900(LxWxH) 4.2kw

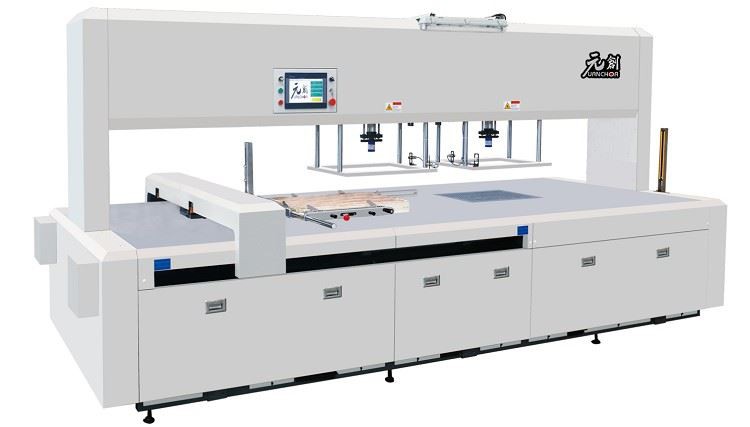

QF1080C Automatic Blanking Machine





Model Max.pressure Speed Max.blanking size Min.stripping size Max.blanking thickness Operation system Max.paper size Min.paper size Machine size Machine power

QF1080C 7Mpa Blanking Speed 500-1500 times/hour 520x380mm 30x30mm Thickness 60mm-120mm(50-200张) PLCcontrolled 1080x780mm 540x410mm 4310x1750x1950(LxWxH) 6.7kw

The machine is suitable for cross products and products with two kinds of different shapes or sizes.





















The single head automatic blanking machines are new (or unused) and the guarantee period will be given thirteen months from shipment date. During this period, the seller will provide free maintenance and free spare parts that caused to the machine's quality, but the buyer must pay the courier cost. Parts damaged because of mishandling and consumable parts are not covered by any warranty.





Q: Do you provide any help with the product operation?

A: English operation instructions and video will be available.



Q: How about warranty?

A: For machines, we provide one year warranty.



Q: What type of payment support?

A: 100% T/T deposit before the shipment.



Q: How long is the delivery time?

A: About 1-2 working days.
